LEDs
- LED stands for Light Emitting Diode.
- An LED is semiconductor device that emits light due to Electroluminescence effect.
- LEDs are used in almost each electronical device as indicators.

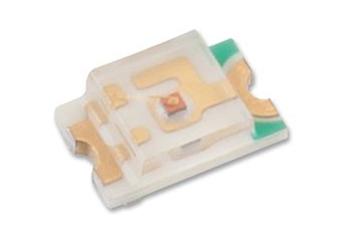

- CHIP 0805(2012)
- 0805 Package(0.8T/1.1T) CHIP LED
■ 2.0 mm X 1.25 mm SMD LED, 0.8/1.10 mm thickness
■ Low power consumption
■ Compatible with automatic placement equipment
■ Ideal for backlight and indicator
■ Packing : 3000pcs / reel
■ RoHS compliant
| Type | Part No. | Lighting Color | Dominant Wavelegth (nm) |
Luminous Intensity IV(Mcd) @IF=5/20mA |
Forward Voltage(v) | Viewing Angle2 1/2 |
|
| Typical | Typical | Min | Max | Typ | |||
| 0805(2012) | L0805QRC | Ultra Red | 624 | 100 | 1.8 | 2.4 | 120 |
| L0805QYOC | Ultra Orange | 604 | 120 | 1.8 | 2.4 | 120 | |
| L0805QYC | Ultra Yellow | 588 | 120 | 1.8 | 2.4 | 120 | |
| L0805QGC | Ultra Yellow Green | 572 | 40 | 1.8 | 2.4 | 120 | |
| L0805PGC | Ultra Dark Green | 560 | 15 | 1.8 | 2.4 | 120 | |
| L0805QBGC | Ultra Green | 518 | 220 | 2.6 | 3.4 | 120 | |
| L0805QBC | Ultra Blue | 465 | 50 | 2.6 | 3.4 | 120 | |
| L0805QWD | White | X=0.29, Y=0.28 | 180 | 2.6 | 3.4 | 120 | |
| L0805QWYD | Warm White | X=0.42, Y=0.43 | 180 | 2.6 | 3.4 | 120 | |
