LEDs

  • LED stands for Light Emitting Diode.
  • An LED is semiconductor device that emits light due to Electroluminescence effect.
  • LEDs are used in almost each electronical device as indicators.
CHIP 1204(3210)
CHIP 1204(3210)

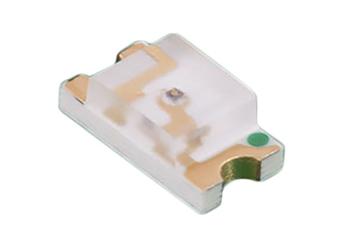

1204 Package(1.5T/1.7T) CHIP LED
■ 3.2 mm X 1.0 mm SMD LED, 1.5/1.7 mm thickness
■ Low power consumption
■ Various colors and lens types available
■ Ideal for backlight and indicator
■ Packing : 3000pcs / reel
■ RoHS compliant
Type Part No. Lighting Color　 Dominant Wavelegth
 (nm)		 Luminous Intensity
IV(Mcd) @IF=5/20mA		 Forward Voltage(v) Viewing Angle2
1/2
Typical Typical Min Max Typ
1204(3210) L1204QRC Ultra Red 624 120 1.8 2.4 120
L1204QYOC Ultra Orange 604 120 1.8 2.4 120
L1204QYC Ultra Yellow 588 100 1.8 2.4 120
L1204QGC Ultra Yellow Green 572 50 1.8 2.4 120
L1204PGC Ultra Dark Green 560 15 1.8 2.4 120
L1204QBGC Ultra Green 518 200 2.6 3.4 120
L1204QBC Ultra Blue 465 40 2.6 3.4 120
L1204QWD White X=0.29, Y=0.28 180 2.6 3.4 120
L1204QWYD Warm White X=0.42, Y=0.43 180 2.6 3.4 120
