LED stands for Light Emitting Diode.
An LED is semiconductor device that emits light due to Electroluminescence effect.
LEDs are used in almost each electronical device as indicators.

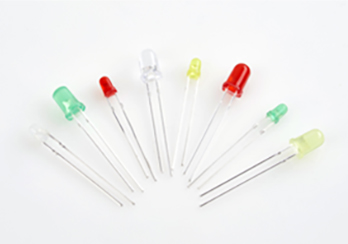

3Ø LAMP LED: 3mm Plug-In Lamp LED
■ Single Color, Bi-Color, RGB Color
■ Low power consumption
■ Popular T-1 size LED package (3mm)
■ Mounting style : Through-Hole
■ Rugged and reliable
■ RoHS compliant

Type	Part No.	Color	Lens Type	Dominant Wavelegth (nm)	Luminous Intensity IV(Mcd) @IF=5/20mA	Forward Voltage(v)		Viewing Angle2 1/2
Type	Part No.	Color	Lens Type	Typical	Typical	Min	Max	Typ
3Ø LED	L304QRC	Red	Diffuse	620	40	1.8	2.4	30
	L304QBGC	Green	Diffuse	520	40	1.8	2.4	30
	L304QYC	Yellow	Diffuse	585	50	1.8	2.4	30
3Ø High Brightness LED	L302QRC	Ultra Red	Water Clear	620	800	1.8	2.2	30
	L302QYC	Ultra Yellow	Water Clear	585	1000	1.8	2.2	30
	L302QGC	Ultra Yellow Green	Water Clear	572	500	1.8	2.2	30
	L302QBGC	Ultra Green	Water Clear	520	2000	1.8	2.2	30
	L302QBC	Ultra Blue	Water Clear	460	1000	2.8	3.6	30
	L302QWC	Ultra White	Water Clear	X=0.29, Y=028	2000	2.8	3.6	30
3Ø BI-COLOR	L304QRQGW	Ultra Red	Diffuse	624	400	1.8	2.4	30
	L304QRQGW	Ultra Yellow Green	Diffuse	572	300	1.8	2.4	30
	L304QRQYW	Ultra Red	Diffuse	624	400	1.8	2.4	30
	L304QRQYW	Ultra Yellow	Diffuse	589	400	1.8	2.4	30
	L304QRQBW	Ultra High Red	Diffuse	624	600	1.8	2.4	30
	L304QRQBW	Ultra Blue	Diffuse	468	1500	2.8	3.6	30
	L304QRQBGW	Ultra High Red	Diffuse	624	600	1.8	2.4	30
	L304QRQBGW	Ultra Green	Diffuse	525	1500	2.8	3.6	30
	L304QBQBGW	Ultra Blue	Diffuse	468	1500	2.8	3.6	30
	L304QBQBGW	Ultra Green	Diffuse	525	3000	2.8	3.6	30
3Ø RGB	L304QRQBGQBC	Ultra Red	Water Clear	624	500	1.8	2.4	30
	L304QRQBGQBC	Ultra Green	Water Clear	525	2000	2.8	3.6	30
	L304QRQBGQBC	Ultra Blue	Water Clear	468	1000	2.8	3.6	30
