Bridge to the future thru LIHOM
Crystal Quartz Units
- Crystal Quartz Units are used in a wide range of electronic applications that require timing devices
- Model : BMC-16, BMC-20, BMC-25, BMC-30, BMC-50, BMC-60, BMC-70
- Tight tolerance and stability available
- The best choice of Bluetooth, wireless communication sets, PDA, STB.

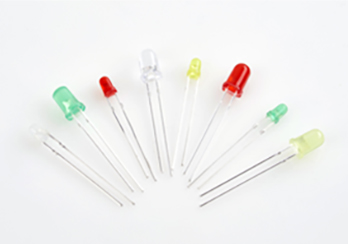

- 3Ø LAMP LED
- 3mm Plug-In Lamp LED
■ Single Color, Bi-Color, RGB Color
■ Low power consumption
■ Popular T-1 size LED package (3mm)
■ Mounting style : Through-Hole
■ Rugged and reliable
■ RoHS compliant
Type | Part No. | Color | Lens Type | Dominant Wavelegth (nm) |
Luminous Intensity IV(Mcd) @IF=5/20mA |
Forward Voltage(v) | Viewing Angle2 1/2 |
|
Typical | Typical | Min | Max | Typ | ||||
3Ø LED | L304QRC | Red | Diffuse | 620 | 40 | 1.8 | 2.4 | 30 |
L304QBGC | Green | Diffuse | 520 | 40 | 1.8 | 2.4 | 30 | |
L304QYC | Yellow | Diffuse | 585 | 50 | 1.8 | 2.4 | 30 | |
3Ø High Brightness LED | L302QRC | Ultra Red | Water Clear | 620 | 800 | 1.8 | 2.2 | 30 |
L302QYC | Ultra Yellow | Water Clear | 585 | 1000 | 1.8 | 2.2 | 30 | |
L302QGC | Ultra Yellow Green | Water Clear | 572 | 500 | 1.8 | 2.2 | 30 | |
L302QBGC | Ultra Green | Water Clear | 520 | 2000 | 1.8 | 2.2 | 30 | |
L302QBC | Ultra Blue | Water Clear | 460 | 1000 | 2.8 | 3.6 | 30 | |
L302QWC | Ultra White | Water Clear | X=0.29, Y=028 | 2000 | 2.8 | 3.6 | 30 | |
3Ø BI-COLOR | L304QRQGW | Ultra Red | Diffuse | 624 | 400 | 1.8 | 2.4 | 30 |
L304QRQGW | Ultra Yellow Green | Diffuse | 572 | 300 | 1.8 | 2.4 | 30 | |
L304QRQYW | Ultra Red | Diffuse | 624 | 400 | 1.8 | 2.4 | 30 | |
L304QRQYW | Ultra Yellow | Diffuse | 589 | 400 | 1.8 | 2.4 | 30 | |
L304QRQBW | Ultra High Red | Diffuse | 624 | 600 | 1.8 | 2.4 | 30 | |
L304QRQBW | Ultra Blue | Diffuse | 468 | 1500 | 2.8 | 3.6 | 30 | |
L304QRQBGW | Ultra High Red | Diffuse | 624 | 600 | 1.8 | 2.4 | 30 | |
L304QRQBGW | Ultra Green | Diffuse | 525 | 1500 | 2.8 | 3.6 | 30 | |
L304QBQBGW | Ultra Blue | Diffuse | 468 | 1500 | 2.8 | 3.6 | 30 | |
L304QBQBGW | Ultra Green | Diffuse | 525 | 3000 | 2.8 | 3.6 | 30 | |
3Ø RGB | L304QRQBGQBC | Ultra Red | Water Clear | 624 | 500 | 1.8 | 2.4 | 30 |
L304QRQBGQBC | Ultra Green | Water Clear | 525 | 2000 | 2.8 | 3.6 | 30 | |
L304QRQBGQBC | Ultra Blue | Water Clear | 468 | 1000 | 2.8 | 3.6 | 30 |
