Crystal Quartz Units

  • Crystal Quartz Units are used in a wide range of electronic applications that require timing devices
  • Model : BMC-16, BMC-20, BMC-25, BMC-30, BMC-50, BMC-60, BMC-70
  • Tight tolerance and stability available
  • The best choice of Bluetooth, wireless communication sets, PDA, STB.

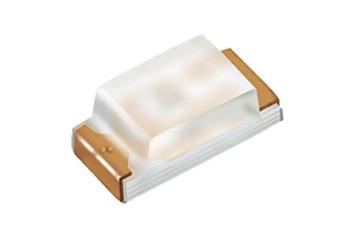

CHIP 0603(1608)
CHIP 0603(1608)
0603 Package(0.4T) Chip LED
■ 1.6 mm X 0.8 mm SMD LED, 0.4/0.6/0.8 mm thickness
■ Low power consumption
■ Compatible with automatic placement equipment
■ Ideal for backlight and indicator
■ Packing : 4000pcs / reel
■ RoHS compliant
Type Part No. Lighting Color　 Dominant Wavelegth
 (nm)		 Luminous Intensity
IV(Mcd) @IF=5/20mA		 Forward Voltage(v) Viewing Angle2
1/2
Typical Typical Min Max Typ
0603(1608) L0402QRC Ultra Red 624 100 1.8 2.4 120
L0402QYOC Ultra Orange 604 120 1.8 2.4 120
L0402QYC Ultra Yellow 588 120 1.8 2.4 120
L0402QGC Ultra Yellow Green 572 40 1.8 2.4 120
L0402PGC Ultra Dark Green 560 15 1.8 2.4 120
L0402QBGC Ultra Green 518 220 2.6 3.4 120
L0402QBC Ultra Blue 465 50 2.6 3.4 120
L0402QWD White X=0.29, Y=0.28 180 2.6 3.4 120
L0402QWYD Warm White X=0.42, Y=0.43 180 2.6 3.4 120
